The Flame Boss 300 Wifi
Temperature Controller


Web Page Features

In addition to controlling your Flame Boss unit and viewing the graph, there are other features available on the web page of your cook:
  • Edit the title of your cook
  • Add notes about your cook
  • End the cook
  • Share your cook on Twitter
  • Share your cook on Facebook
  • Access the raw data from your controller

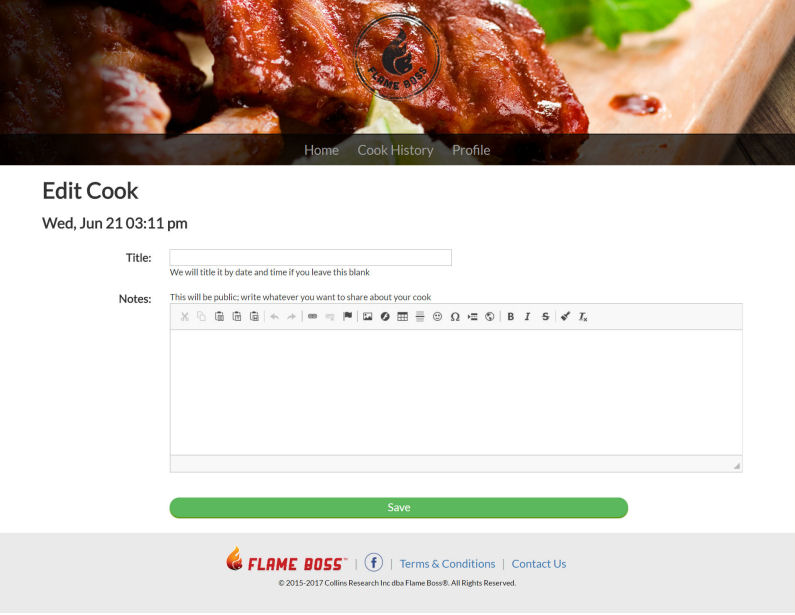

Editing Cooks: If you click on the link to edit your cook, you will get a screen like this:

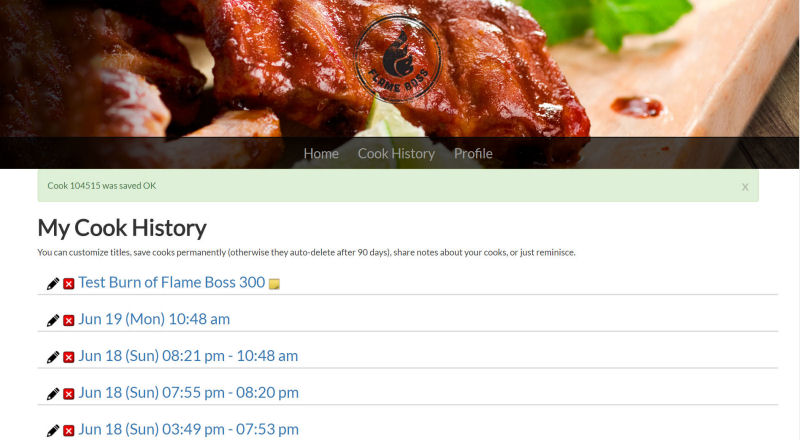

where you can give the cook a title and record notes. If you click on the "Cook History" link, you will see a list of your cooks from the last 90 days:

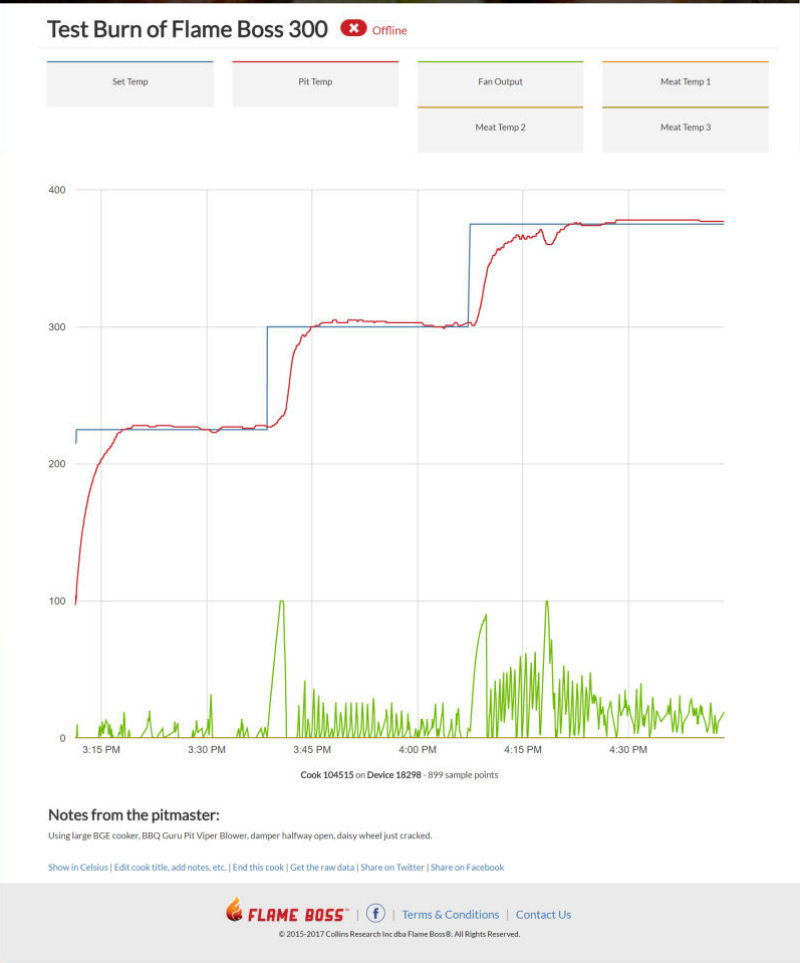

Finally, clicking on one of the cook links will take you to a screen like the following:

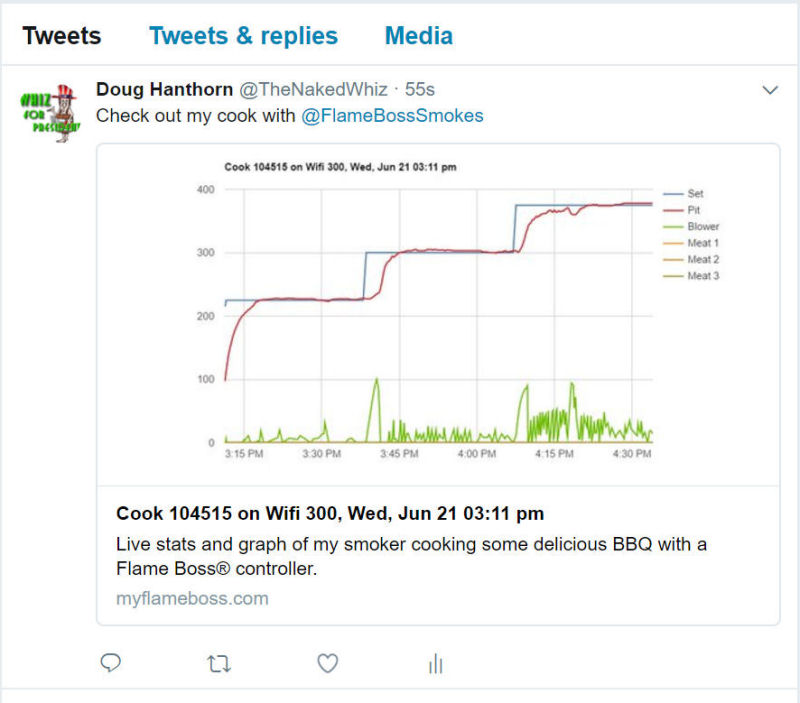

Sharing Cooks on Twitter: Clicking on the "Share on Twitter" link will result in the following type of tweet to be posted on your Twitter account:

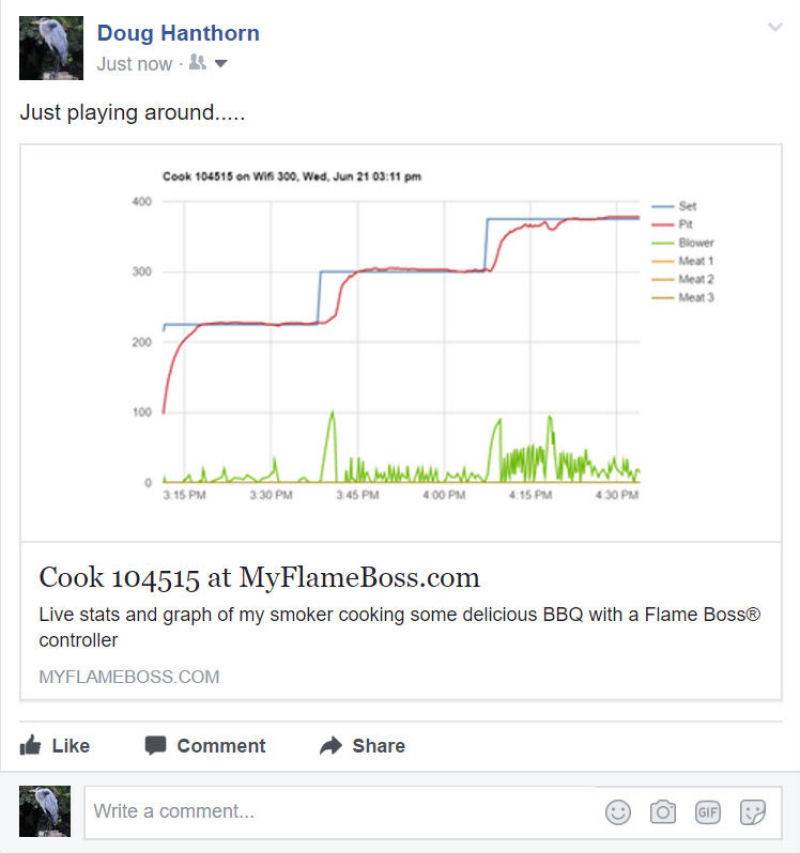

Sharing Cooks on Facebook: Clicking on the "Share on Facebook" link will result in the following type of post to appear on your Facebook wall:

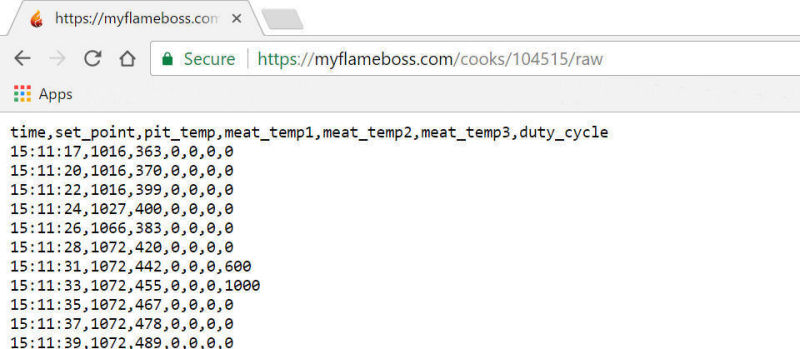

Access to Raw Data: Clicking on the "Get the raw data" link will give you access to the raw data readings from your cook. It will look something like this:


You can right click on this webpage and save the data as a .TXT file. If you rename it to a .CSV (comma separated variable) file, you can then open it in a spreadsheet to work with it:


Once you have it in a spreadsheet, you can add some columns and get the data into a more usable format:


In the above image, the original data provided by the Flame Boss is in the light blue columns. We then added some columns using the following formulae:

  • set_point C is calculated by dividing the set_point column by 10. This is the set point temperature in °C.
  • set_point F is calculated by multiplying the set_point C column by 1.8 and adding 32. This is the set point temperature in °F.
  • You can do the same two calculations for each of the meat_temp columns.
  • duty_cycle % is calculated by dividing the duty_cycle column by 10,000 and formatting it as a percentage.
