Web Page Features

There are three ways to monitor and control your FireBoard 2 Drive controller, via the unit's display, via an App, and via the web using a browser. You have already seen what the display looks like and a little of what the App looks like in previous sections (and you'll see more in a following section), so let's take a quick look at the web interface.

The web interface can be found at www.fireboard.io. We'll show you some of the basic features here, but feel free to go explore on your own. Even though you may not want to use the web interface as your main method, there are a few options/features that exist only in the web interface (such as accessing your raw data).

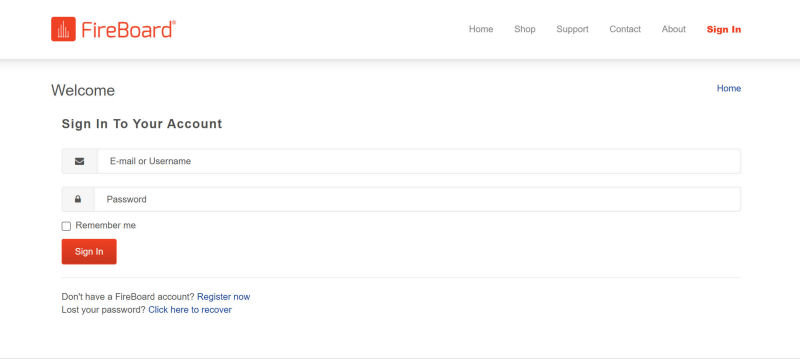

When you visit the FireBoard.io website, you will first be asked to log in. (If you don't have an account, the Login screen gives you the opportunity to create a new account.)

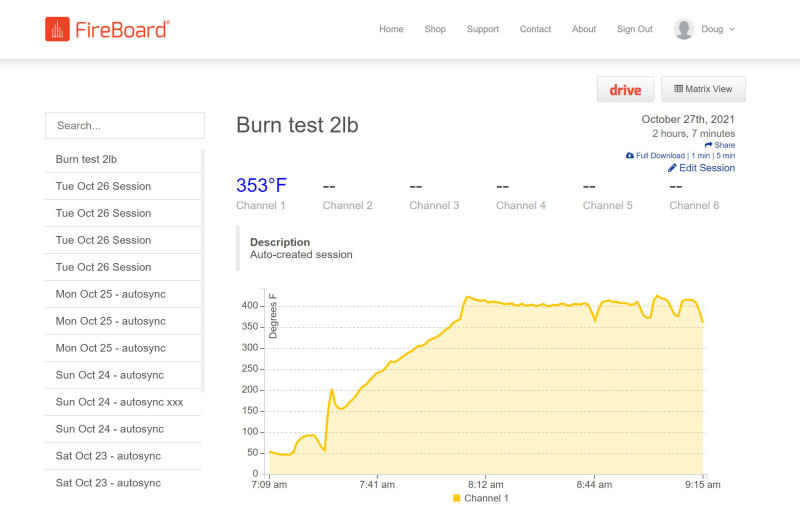

Upon logging in you are taken to the Dashboard showing its "Realtime View" of either your current or your most recent session:

Things you can do from the Dashboard:

• Select a session to view from the column on the left.
• If viewing an active session, you can see the temperature for each channel.
• See a graph of all active channels.
• Edit the session, changing it's title and adding notes.
• Download the raw temperature data for the session.
• Share your session via email, Facebook, Twitter or Google.
• Switch to the Drive view (see next screen).

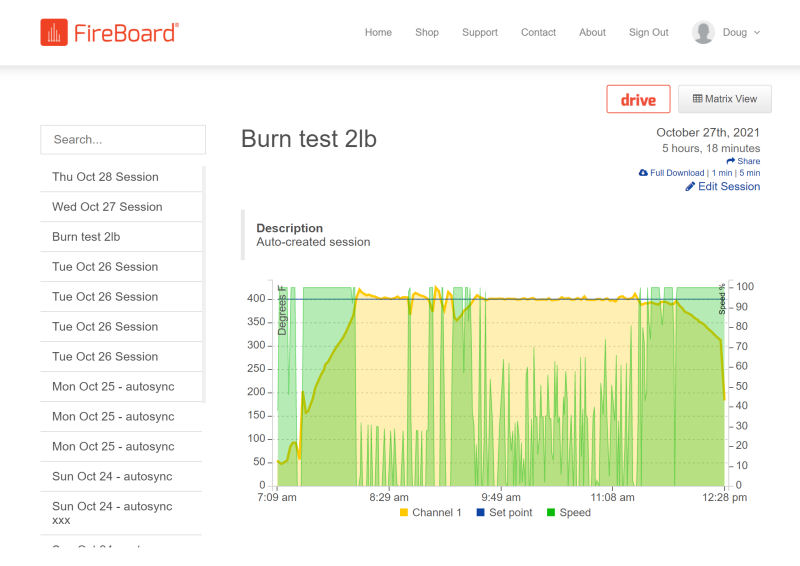

If your session used a blower, clicking on the Drive button at the top gives you this view with the blower information and the set point added to the original graph:

Things you can do from the Drive view if you are viewing an active session:

• View Drive parameters such as set point, blower speed, Drive mode and control channel. (Active session)
• Alter the values of the Drive parameters. (Active session)
• View additional data on the graph: Set Point, and Blower Percentage.

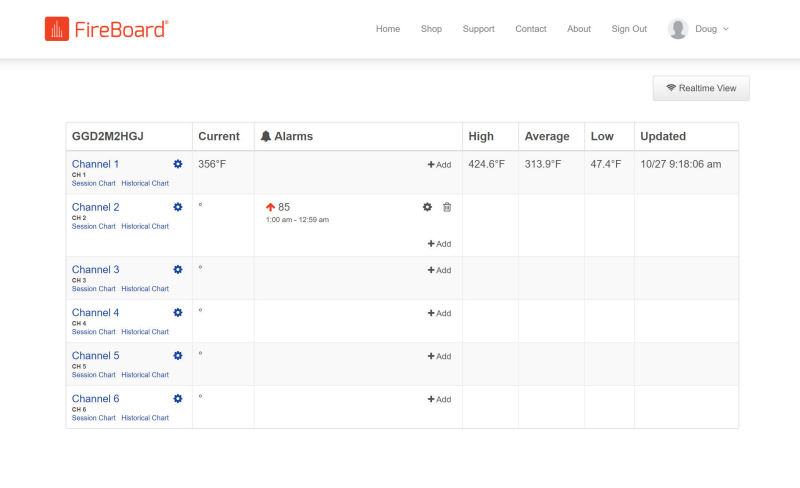

Clicking on the Matrix View button at the top gives you this matrix view of the channels and data:

A few things you can do from the Matrix view:

• Rename a channel or designate a channel as a Failsafe Monitor.
• Add, edit and delete alarms for each channel.

Access To Raw Data

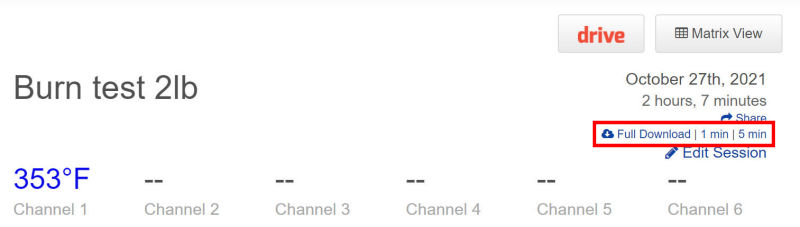

When you are viewing the "Realtime View", you have the option of saving the raw data for your session. You can click on either "Full Download", "1 min", or "5 min" to download a .CSV file containing the raw data:

• Full Download: This option downloads a .CSV file that contains all the data captured. For the "Burn test 2lb" session that we showed you above, this consisted of 3804 readings over the 5 hour, 18 minute session.

• 1 min: This option downloads a .CSV file that contains readings taken at 1-minute intervals. For the "Burn test 2lb" session that we showed you above, this consisted of 320 readings over the 5 hour, 18 minute session.

• 5 min: This option downloads a .CSV file that contains readings taken at 5-minute intervals. For the "Burn test 2lb" session that we showed you above, this consisted of 65 readings over the 5 hour, 18 minute session.

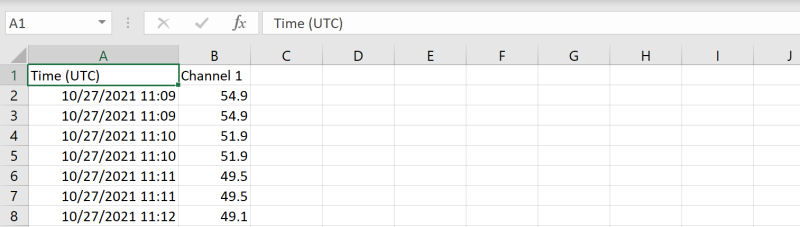

Here's what a portion of the "Full Download" .CSV file looks like if you open it with Excel:

Needless to say, had we plugged in more temperature probes, there would have been additional columns, one for each additional probe.

A few comments on the contents of the spreadsheet:

• Only the active channels are included.
• The blower readings are not included.
• Generally speaking, entries in the "Full Download" spreadsheet are only created when the value for one of the channels changes, not at fixed intervals. Entries for the 1 and 5-minute spreadsheets are created at fixed 1 and 5-minute intervals.
• The "Time" column actually contains both date and time values, which requires some trickery to extract only the time. You can create a blank column and then use this formula to convert the date/time cell into just the time:

        =TIME(HOUR(A1),MINUTE(A1),SECOND(A1))

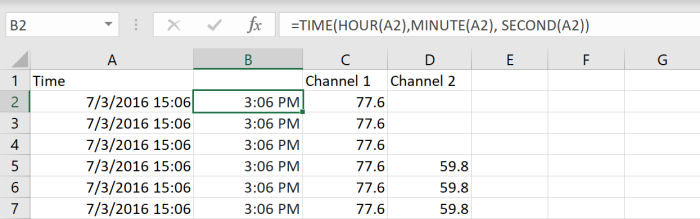

  Here's what it looks like:
